Ubiquiti UniFi AP NanoHD
1733 Mbit/sPrice in EUR including VAT, free shipping
Delivered Mon, 28-4
Only 3 items in stock
Only 3 items in stock
Number
- UniFi AP NanoHD (1733 Mbit/s)EUR188,14
- UniFi AP AC NanoHD set of 5 (1733 Mbit/s)EUR868,25
- UniFi AP AC NanoHD set of 3 (1733 Mbit/s)EUR526,–
Series
- UniFi AP AC-PRO (1300 Mbit/s)EUR169,–
- UniFi AP AC-LITE (867 Mbit/s)EUR119,–
- UniFi AP AC-LR (866 Mbit/s)EUR139,–
- UniFi AP-AC-HD (1733 Mbit/s)EUR189,–
- UniFi AP NanoHD (1733 Mbit/s)EUR188,14
- UniFi UAP-IW-HD: Inwall AP (1733 Mbit/s)EUR169,–
- UniFi AP FlexHD (1733 Mbit/s)EUR175,30
Product details
The UniFi UAP NanoHD is the first UniFi Access Point equipped with the new Wave2 standard. With 4x4 MIMO and a range of 122 meters, the NanoHD is the ideal high-performance access point for indoor use. Depending on the conditions, the access point can achieve speeds of 1733 Mbps on the 5 GHz network and 300 Mbps on the 2.4 GHz network.

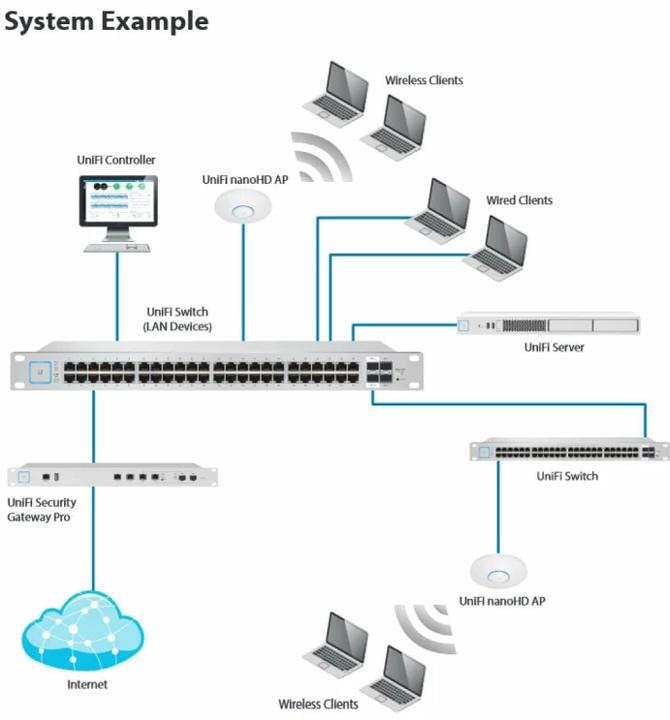

Ubiquiti has developed a professional WLAN controller solution with UniFi, operated by the free UniFi Controller software. This enables powerful features such as centralized management of large wireless networks. Various functions are available for use in commercial and educational environments, allowing for the construction of large networks. These include the creation of vouchers that provide time-limited access to the internet, as well as security-related features such as Walled Garden, guest network isolation, VLAN, and detailed analytics.
Ubiquiti is the first provider to implement the new WLAN standard IEEE 802.11ac, which utilizes the 5 GHz frequency band and allows for a transmission rate of up to 1733 Mbps.
Possible applications:
- Universities
- Schools
- Hotels and restaurants
- Office buildings
- Hospitals
- Government agencies
Packed with features: Once the UniFi server is installed on a Mac or PC, the UniFi controller can be accessed from any device with a web browser.
Unlimited scalability: Expand your wireless network; size does not matter. Start with one access point and scale up to thousands.
Dimensions: 160 x 160 x 32.65 mm
Weight: 300 g
Antennas: 4x4 MIMO 5 GHz, 2x2 MIMO 2.4 GHz
Data throughput 2.4 GHz: max. 300 Mbps
Data throughput 5 GHz: max. 1733 Mbps
Max TX Power 2.4 GHz: 23 dBm
Max TX Power 5 GHz: 26 dBm
Simultaneous clients: 200+
WLAN standard: 802.11a/b/g/n/ac/ac-wave2
Network: 1x 10/100/1000 Ethernet.
Wi-Fi standard | Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Wi-Fi frequency band | Dual band |
PoE Standard | 802.3af (PoE) |
Operating modes | Access point |
Area of application | Business |
Number of RJ45/LAN ports | 1 |
Max. port speed | 1000 Mbit/s |
Documents | |
Item number | 8345092 |
Manufacturer | Ubiquiti |
Category | Access points |
Manufacturer no. | UAP-NanoHD |
Release date | 18-4-2018 |
Operating modes | Access point |
Max. number of clients | 200 x |
Number of antennas | 16 x |
Antenna gain | 3 dB |
Long range coverage | 0.12 km |
Number of RJ45/LAN ports | 1 |
Max. port speed | 1000 Mbit/s |
Access Point Functions | Guest access |
Wi-Fi standard | Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
5 GHz transfer rate | 1733 Mbit/s |
2.4 GHz transfer rate | 300 Mbit/s |
Wi-Fi frequency band | Dual band |
Wi-Fi encryption | WEP, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK |
Area of application | Business |
Installation place | Ceiling, Wall |
Power supply | PoE |
PoE Standard | 802.3af (PoE) |
Power consumption | 10.50 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x bracket, 1x ceiling tile, 1x UniFi nanoHD AP |
Length | 16 cm |
Width | 16 cm |
Height | 3.27 cm |
Weight | 300 g |
Length | 20 cm |
Width | 20 cm |
Height | 9 cm |
Weight | 998 g |
Product Safety |
