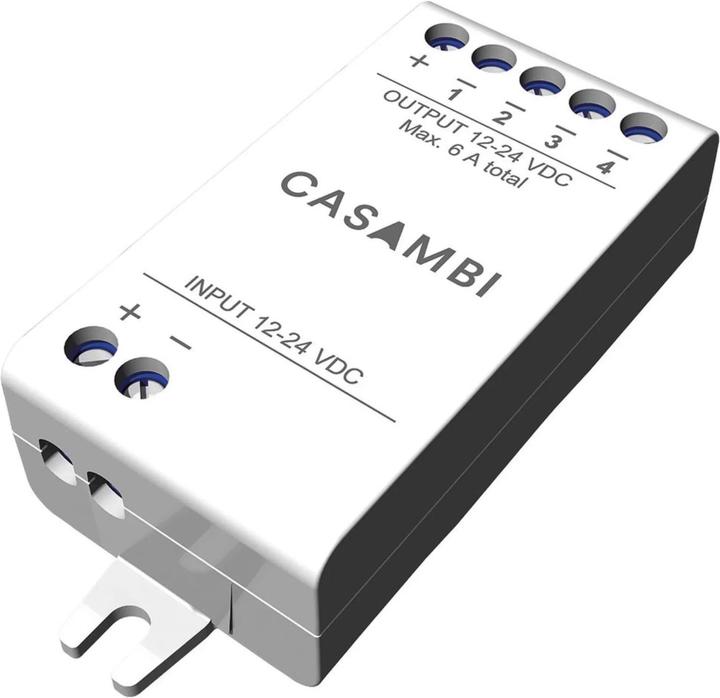

RP-Technik Casambi Module YMOCA-PWM-04

Manufacturer: RP-Technik
Designation: Casambi Module PWMA4
Module Type: YMOCA-PWM-04
Design: static
Suitable for outdoor use: no
Type of control: other
Number of color channels: 4
Programmable: yes
Housing: plastic housing
Construction: no
Installation: yes
DIN rail mounting: no
Output voltage: 12-24 V
Input voltage: 12-24 V
Max. output current: 6 A
Protection class (IP): IP20
Protection class: III
Length: 72.6 mm
Width: 30 mm
Height: 18 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
Compatible with Casambi: yes
IFTTT support available: no

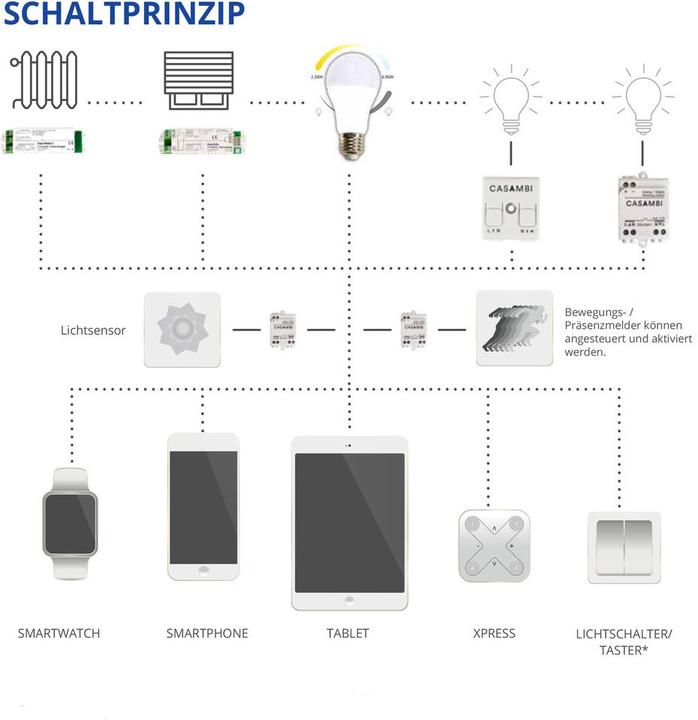

This module can be installed wherever the user needs it and allows direct access to all important functions of the Casambi lighting control. This includes dimming, turning lights on and off, as well as setting RGB and RGBW through the color selection field. Additionally, various scenes can be scheduled via the timer.
