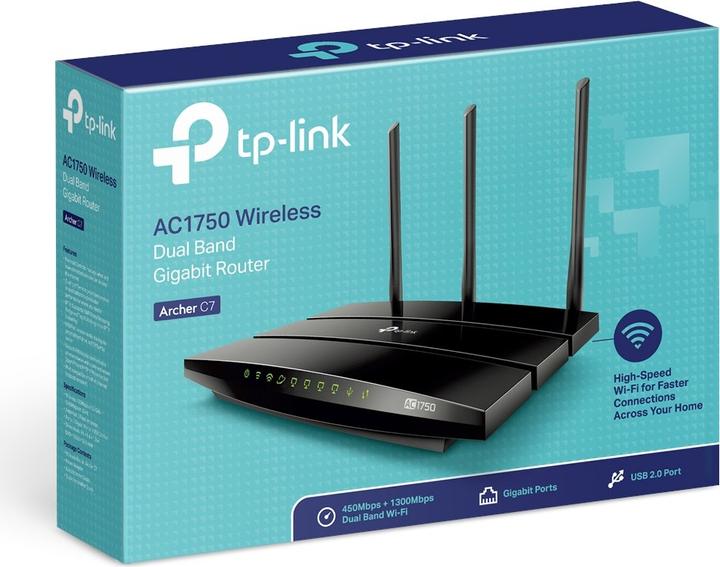

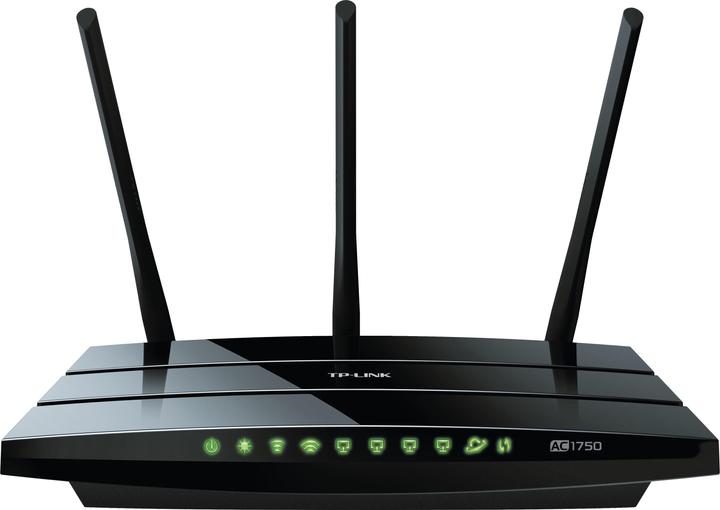

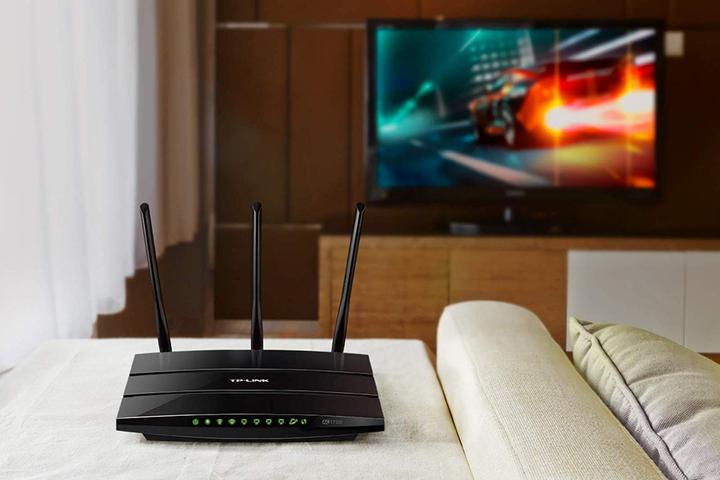

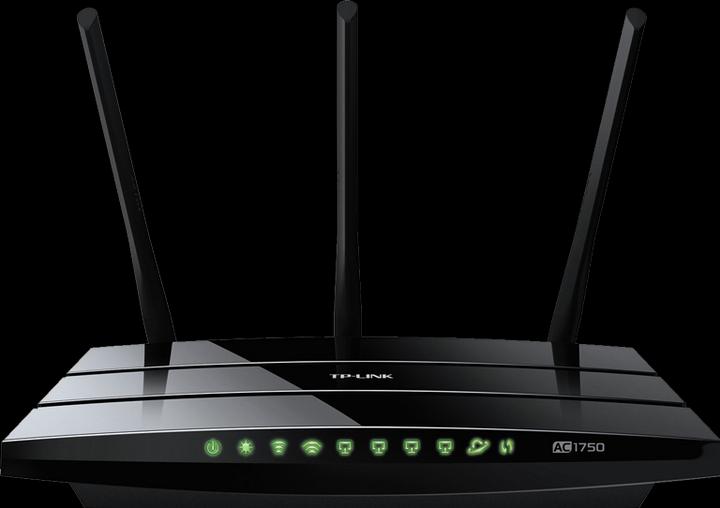

TP-Link Archer C7

Series

Product details

TP-Link's Archer C7 is equipped with the next-generation Wi-Fi standard and achieves data rates of up to 1.75 Gbps, which is three times faster than the Wi-Fi N standard. With this high speed, the Archer C7 is the best choice for seamless HD video streaming, online gaming, and other bandwidth-intensive applications. It offers an FTP server for accessing your data from anywhere over the internet, as well as a guest access feature. The IP-based bandwidth control allows for effective resource management. Setting up a WPA2-secured connection is easy with the press of the WPS button. The Archer C7 is backward compatible with older Wi-Fi standards IEEE 802.11a/b/g/n.

Key specifications

Router type
Wi-Fi router
Number of ports
4 Ports
Network connections
RJ45 (4x)
Wi-Fi standard
Wi-Fi 1 / 802.11b
Wi-Fi 2 / 802.11a
Wi-Fi 3 / 802.11g
Wi-Fi 4 / 802.11n
Wi-Fi 5 / 802.11ac
Router functions
Firewall
Multi WAN
Quality of Service (QoS)
5 GHz transfer rate
1300 Mbit/s
2.4 GHz transfer rate
450 Mbit/s
Documents
Item number
440552

General information

Manufacturer
Category
Manufacturer no.
Archer C7
Release date
7.6.2013

Colour

Colour group
Black
Exact colour description
Black

Router properties

Router type
Wi-Fi router
Router functions
Firewall
Multi WAN
Quality of Service (QoS)
VPN support
IPSec
L2TP
PPTP

Wi-Fi

Wi-Fi standard
Wi-Fi 1 / 802.11b
Wi-Fi 2 / 802.11a
Wi-Fi 3 / 802.11g
Wi-Fi 4 / 802.11n
Wi-Fi 5 / 802.11ac
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WEP
WPA-EAP
WPA-PSK
WPA2-EAP
WPA2-PSK
WLAN functions
Guest access
WLAN on/off switch
WPS (WiFi Protected Setup)
Number of antennas
3 x
5 GHz transfer rate
1300 Mbit/s
2.4 GHz transfer rate
450 Mbit/s

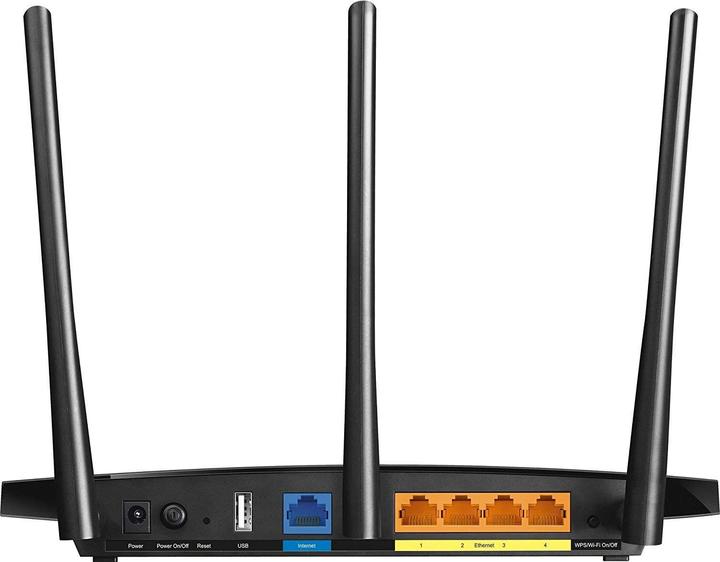

Network interface

Number of ports
4 Ports
Network connections
RJ45 (4x)
Max. port speed
1000 Mbit/s

Additional connections

USB ports
USB-A

Scope of delivery

Scope of delivery
Ethernet cable
Power adapter
Quick installation guide

Product dimensions

Length
24.30 cm
Width
16.06 cm
Height
3.25 cm
Weight
510 g

Package dimensions

Length
33 cm
Width
24 cm
Height
8 cm
Weight
882 g
