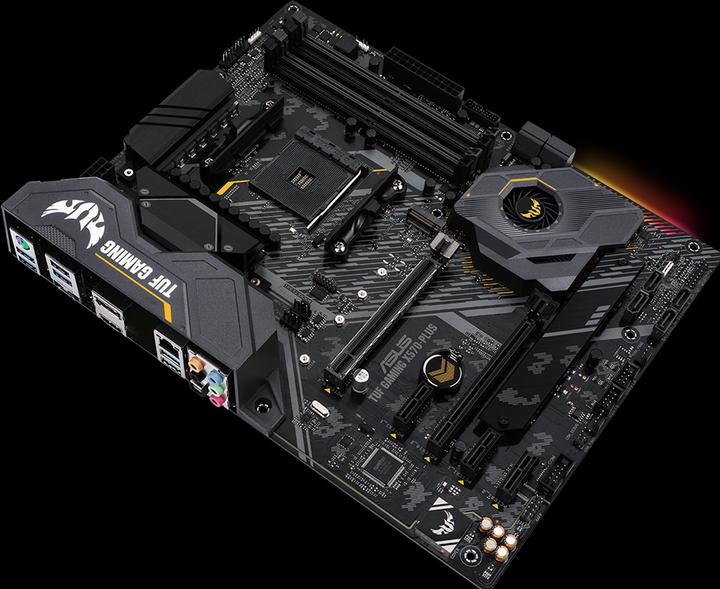

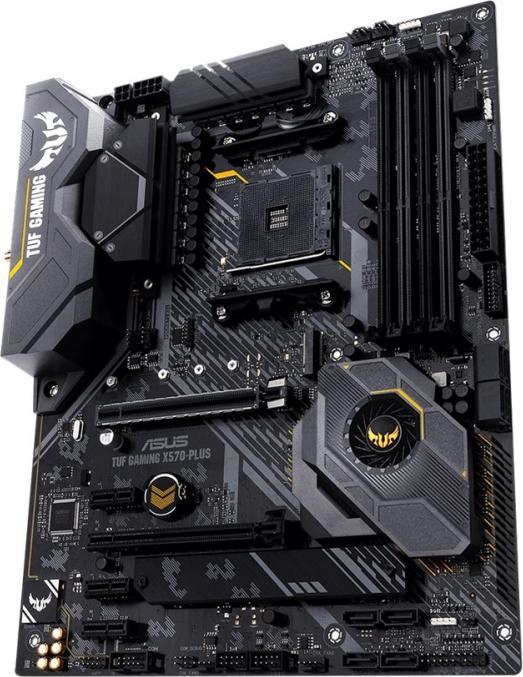

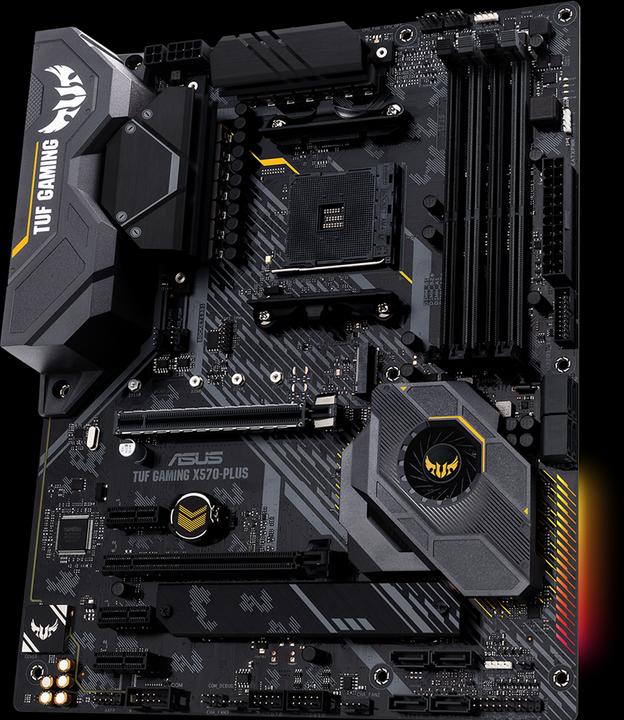

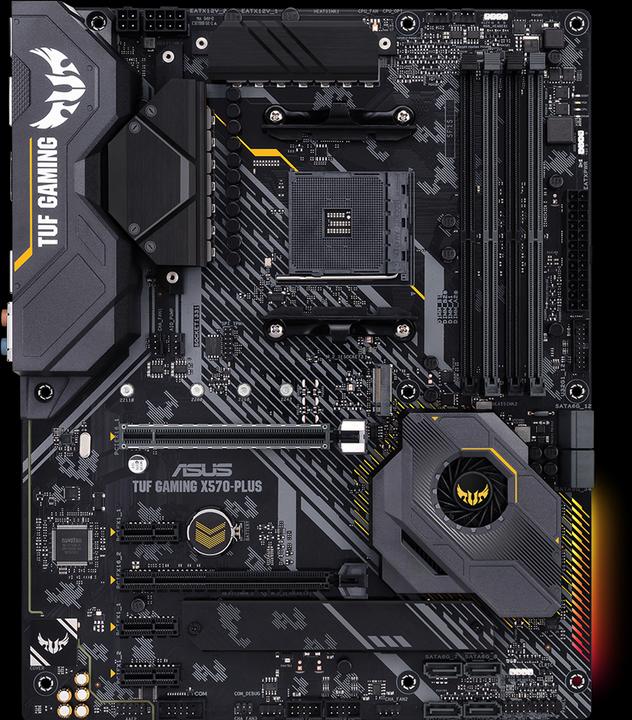

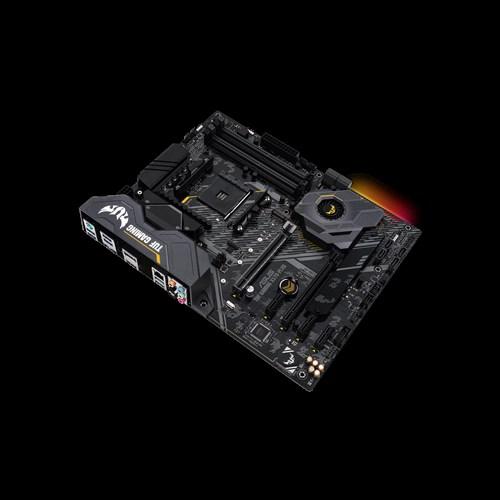

ASUS TUF Gaming X570-Plus

AM4, AMD X570, ATX
47Ratings
Currently out of stock

Series

Product details

TUF gaming mainboards enable simple and secure PC self-build by relying on outstanding design, innovative technology and strong partnerships with leading component manufacturers. The unsurpassed combination
of military standard TUF components, TUF protection and the TUF Gaming Alliance ensures that your gaming system is up to any challenge. PCI Gen. 4.0 only works in combination with a 3rd Gen. Ryzen processor (Ryzen 3/5/7/9 3xxx).

Key specifications

Processor family
Ryzen 2nd Gen,
Ryzen 3rd generation
Memory type
DDR4-RAM
Internal connection options
M.2 PCI/SATA Combo (2x),
S-ATA III (8x)

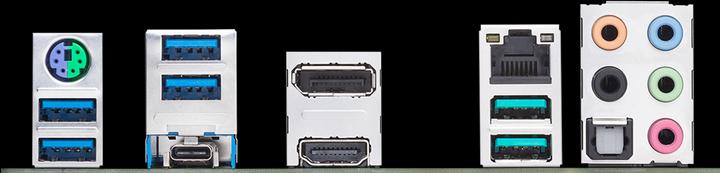

Peripheral connections
PS/2 Combo,
USB 3.0 Type-A (4x),
USB 3.1 Gen 2 Type-A (2x),
USB Type-C (1x)
Item number
11270267

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1180-M0EAY0
Release date
21.6.2019
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Processor socket
AM4
Chipset
AMD X570
Mainboard features
Clear CMOS Button,
COM Port Header,
Trusted Platform Module
Operating system compatibility
Windows 10,
Windows 10 Home,
Windows 10 Pro

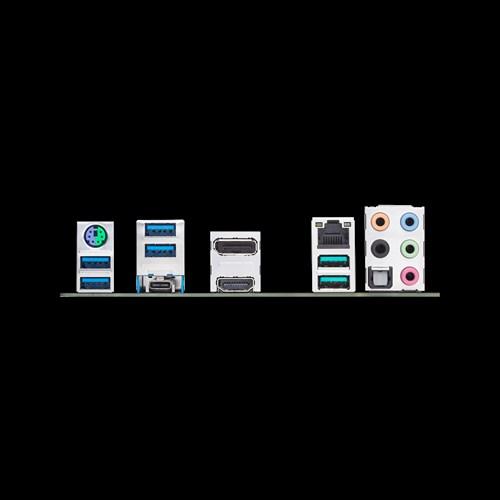

Peripheral connections
PS/2 Combo,
USB 3.0 Type-A (4x),
USB 3.1 Gen 2 Type-A (2x),
USB Type-C (1x)
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 2nd Gen,
Ryzen 3rd generation

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2666,
DDR4-2933,
DDR4-3000,
DDR4-3200
Supported memory speed
2133 MHz,
2400 MHz,
2666 MHz,
2933 MHz,
3000 MHz,
3200 MHz,
4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered
Channel architecture
2

Graphics properties

Video connections
DisplayPort (1x),
HDMI (1x)
Video connection version
HDMI 1.4b
Multi-GPU technology
AMD CrossfireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek L8200A
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC S1200a
Audio channel
8.0 Channel
Audio Connections
Jack 3.5mm (5x),
Optical TOSLINK (1x)

Internal interfaces

Internal connection options
M.2 PCI/SATA Combo (2x),
S-ATA III (8x)
Expansion slot
PCI Express x1 (2x),
PCI Express x16 (2x)
PCI express version (max.)
4
Number of fan connector
6

Power supply

Power connectors
24-pin ATX,
4-pin ATX 12V,
8-pin ATX 12V

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
305 mm
Width
244 mm
Height
244 mm
Weight
1000 g

Package dimensions

Length
34.30 cm
Width
27.30 cm
Height
6.90 cm
Weight
1.49 kg
